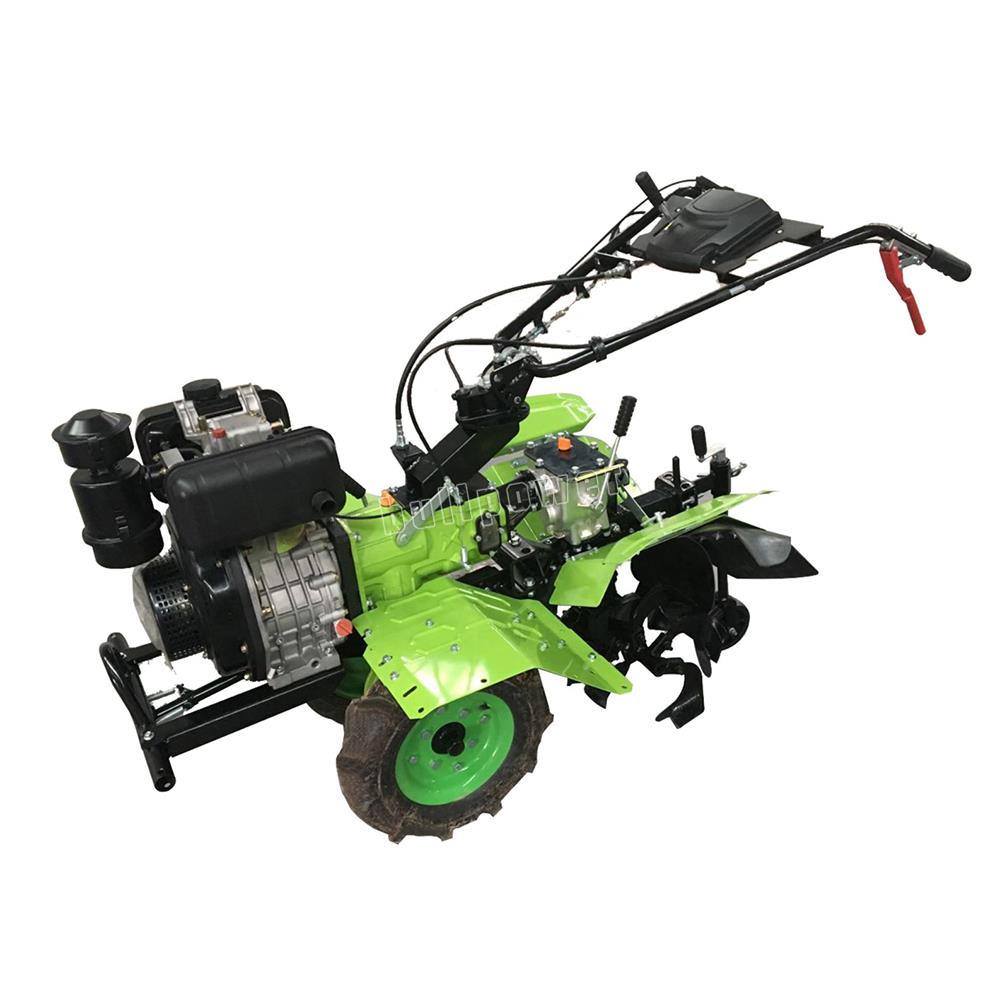

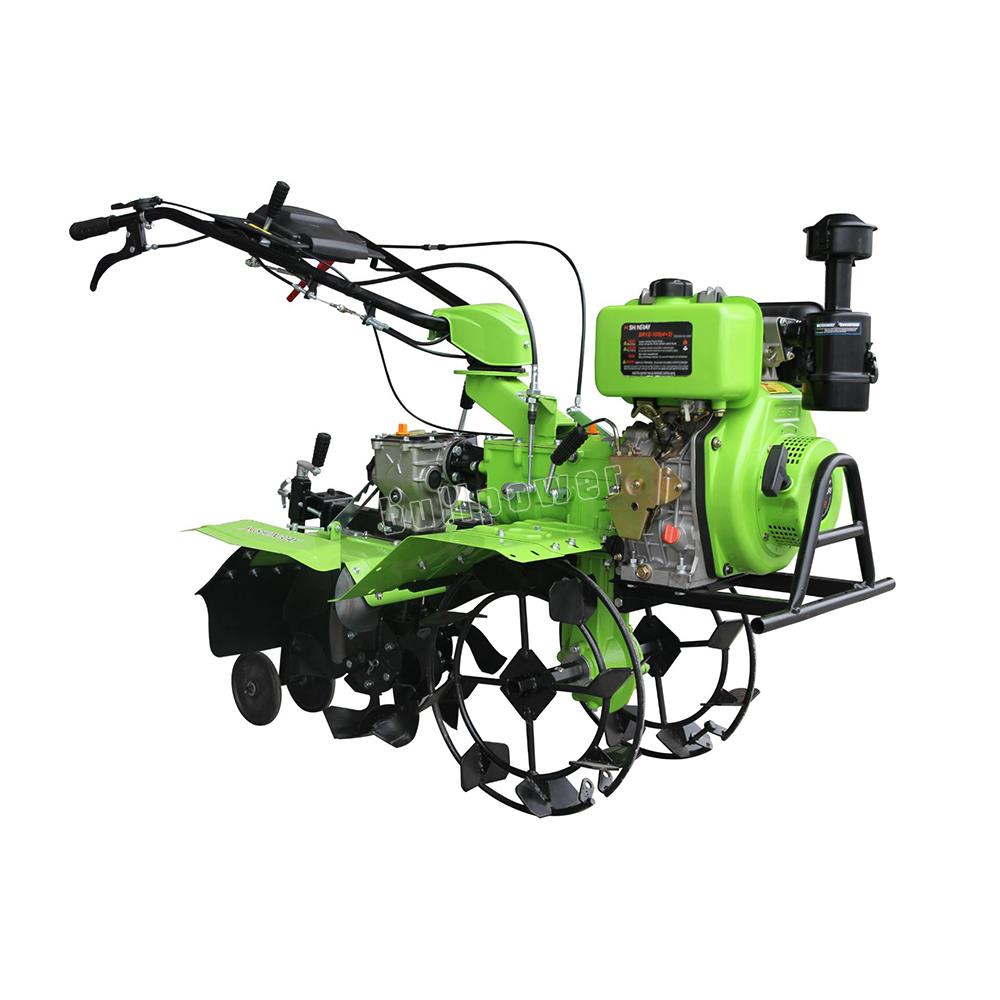

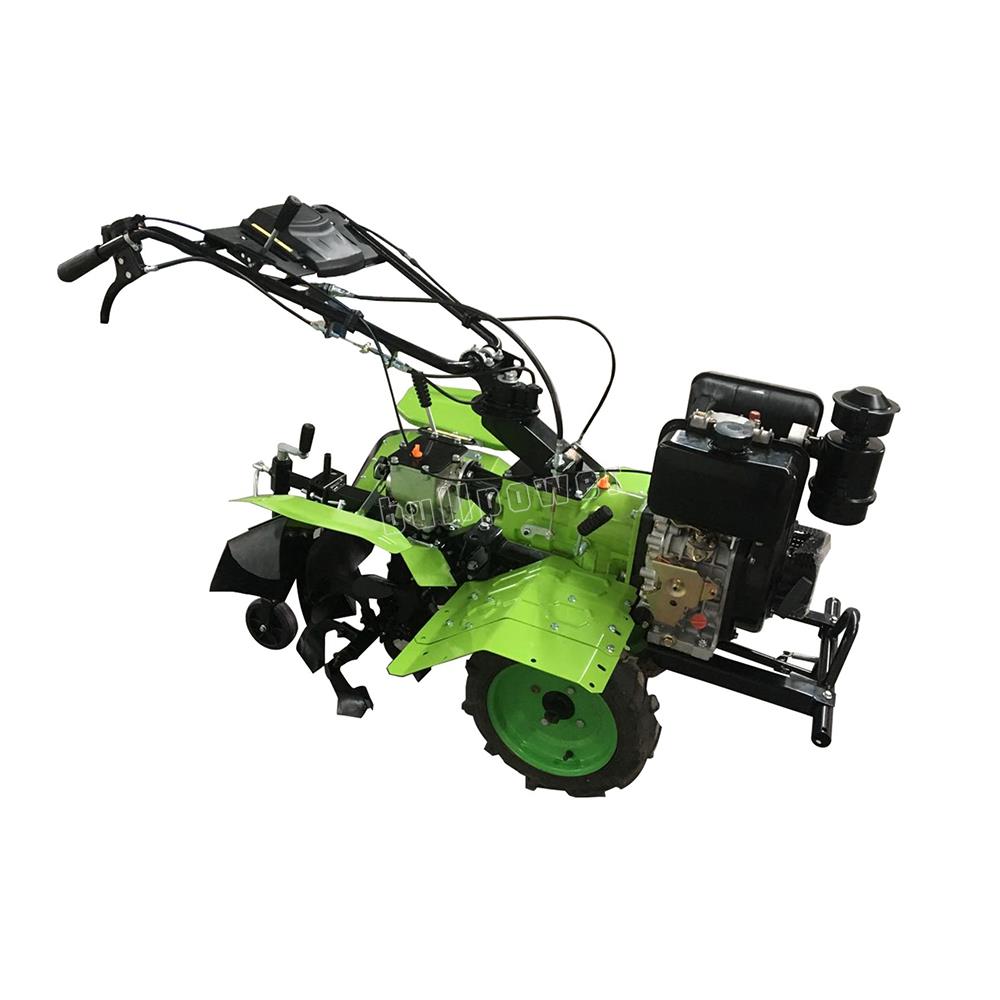

GND110
Technical parameters 技术参数
|
Rotary tiller 耕机 |
Model 型号 | GND110 |
| Tilling scope(mm) 耕宽 | 250/550-1000 | |
| Tilling depth(mm) 耕深 | ≥100/100-300 | |
| Gear shifting 档位 | -1,0,3,2,1/-1,0,3,2,1 | |
| Driving model 传动方式 | Gear/Gear | |
| Transmission oil capacity(L) 变速箱油容量 | 4 | |
| Handlebar System | Up/Down/Left/Right | |
| Tire | 4.0-8 | |
| Blades | 4Pieces x 3Groups | |
|
Engine 发动机 |
Model 型号 | GND178F |
| Type发动机类型 | single-cylinder/vertical/air-cooled/4-stoke/direct injection 单缸/立式/四冲程/直喷式 | |
| Displacement(cc) 排量 | 296 | |
| Ignition Mode 点火方式 | CI Compression Ignition 压缩式点火 | |
| Starting Mode 启动方式 | Recoil/Electric start 手/电启动 | |
| Max Power(hp/kw)rpm 最大功率 | 4.8 | |
| Max Torque(N.M/rpm) 最大扭矩 | 16 | |
| Fuel Tank Capacity(L/Gal) 油箱容量 | 3.5 | |
| Fuel Consumption (L/Hour) 燃油消耗率 | 0.34 | |
| Continuous Work Time(h) 持续工作时间 | 2.8 | |
| Oil Capacity(L/Gal) 机油容量 | 1.1 | |
| Noise Level(7m)(dB) 噪音 | 92 | |
|
Package 包装 |
Package Dimensions(mm) 包装尺寸 | 1540×800×980 |
| Net Weight/Gross Weight(kgs) 净重/毛重 | 148/150 | |
| 20FT Quantity 20尺装箱数量 | 20 | |
| 40HQ Quantity 40尺高柜装箱数量 | 42 |
