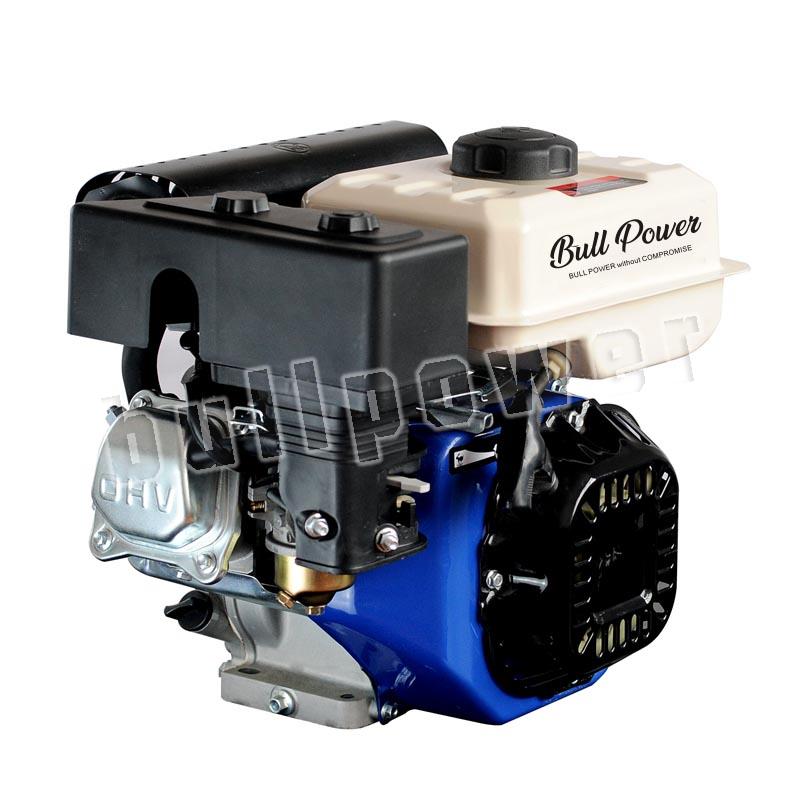

GN220D
Technical parameters 技术参数
| Model 型号 | GN220D/170F | |
|
Engine 发动机 |
Type发动机类型 | 4-stroke/aircooling/single cylinder/OHV 四冲程/单缸/强制风冷/OHV |
| Bore x stroke (mm)缸径 x 行程 | 70x54 | |
| Displacement(cc)排量 | 208 | |
| Ignition Mode点火方式 | Transistorized Magneto晶体管无触点点火 | |
| Starting Mode启动方式 | Recoil/Electric start 手/电启动 | |
| Max.Output(kw/rpm)最大功率 | 4.2/3600 | |
| MaxTorque(N.M/rpm)最大扭矩 | 12/2500 | |
| Fuel Tank Capacity(L/Gal)油箱容量 | 3.6 | |
| Fuel Consumption (L/Hour)/Operating Hours(h) 燃油消耗率/连续运行时间 | 0.54/2.7 | |
| Oil Capacity(L/Gal)机油容量 | 0.6 | |
| Noice Level(7m)(dB)噪音 | ≤82 | |
|
Package 包装 |
Product Dimensions(mm)产品尺寸 | 370 x 320 x 330 |
| Package Dimensions(mm)包装尺寸 | 400 x 350 x 385 | |
| Net Weight/Gross Weight(kgs)净重/毛重 | 16/18 | |
| 20FT Quantity 20尺装箱数量 | 504 | |
| 40FT Quantity 40尺装箱数量 | 1020 | |
| 40HQ Quantity 40尺高柜装箱数量 | 1020 | |
