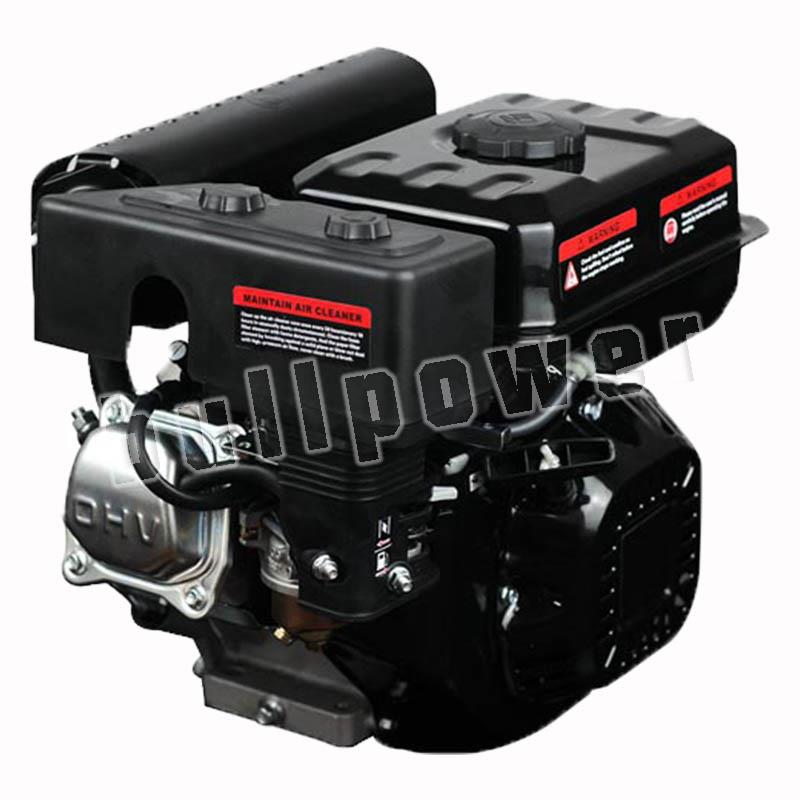

GN270D(1/2 Reduction)
Technical parameters 技术参数
| Model 型号 | GN270D/177F | |
|
Engine 发动机 |
Type发动机类型 | 4-stroke/aircooling/single cylinder/OHV 四冲程/单缸/强制风冷/OHV |
| Bore x stroke (mm)缸径 x 行程 | 77x58 | |
| Displacement(cc)排量 | 270 | |
| Ignition Mode点火方式 | Transistorized Magneto晶体管无触点点火 | |
| Starting Mode启动方式 | Recoil/Electric start 手/电启动 | |
| Max.Output(kw/rpm)最大功率 | 5.8/3600 | |
| MaxTorque(N.M/rpm)最大扭矩 | 18/2500 | |
| Fuel Tank Capacity(L/Gal)油箱容量 | 5.0 | |
| Fuel Consumption (L/Hour)/Operating Hours(h) 燃油消耗率/连续运行时间 | 0.51/3.6 | |
| Oil Capacity(L/Gal)机油容量 | 0.9 | |
| Noice Level(7m)(dB)噪音 | ≤88 | |
|
Package 包装 |
Product Dimensions(mm)产品尺寸 | 420 x 395 x 430 |
| Package Dimensions(mm)包装尺寸 | 435 x 410 x 455 | |
| Net Weight/Gross Weight(kgs)净重/毛重 | 26/28 | |
| 20FT Quantity 20尺装箱数量 | 350 | |
| 40FT Quantity 40尺装箱数量 | 725 | |
| 40HQ Quantity 40尺高柜装箱数量 | 725 | |
