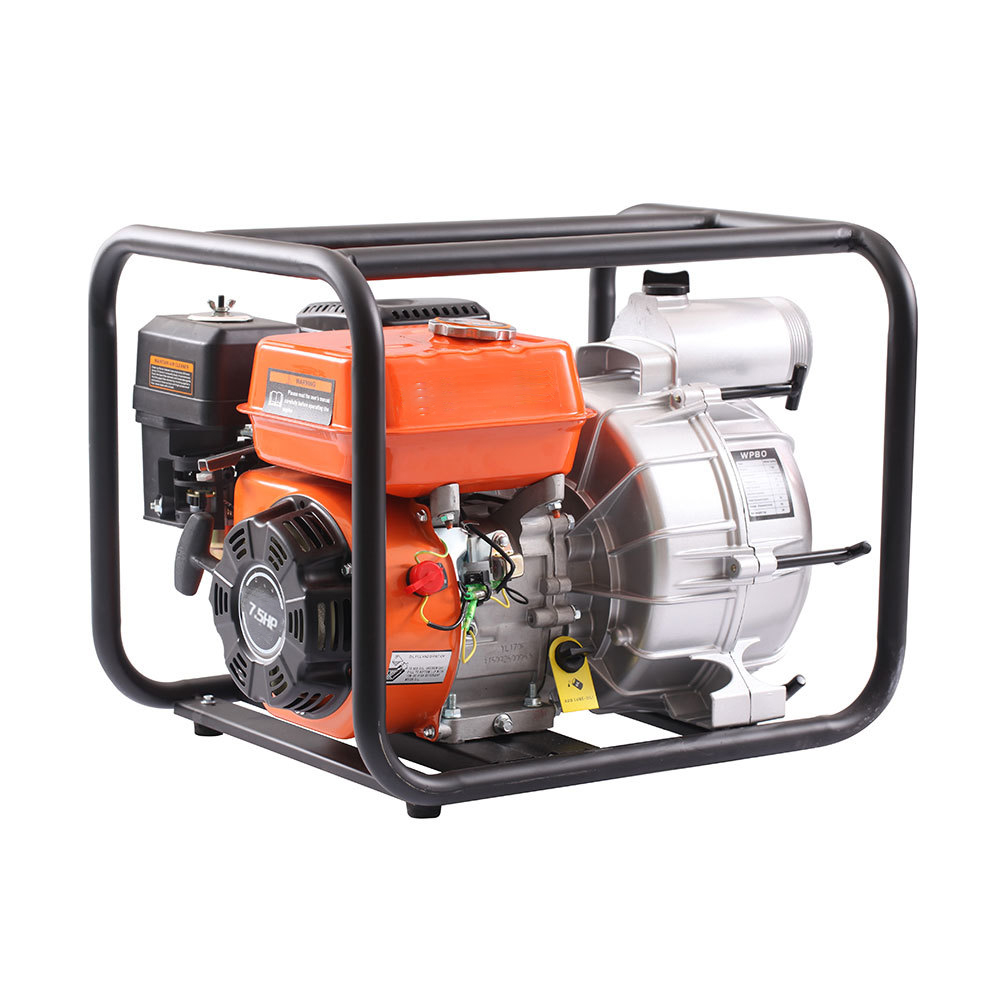

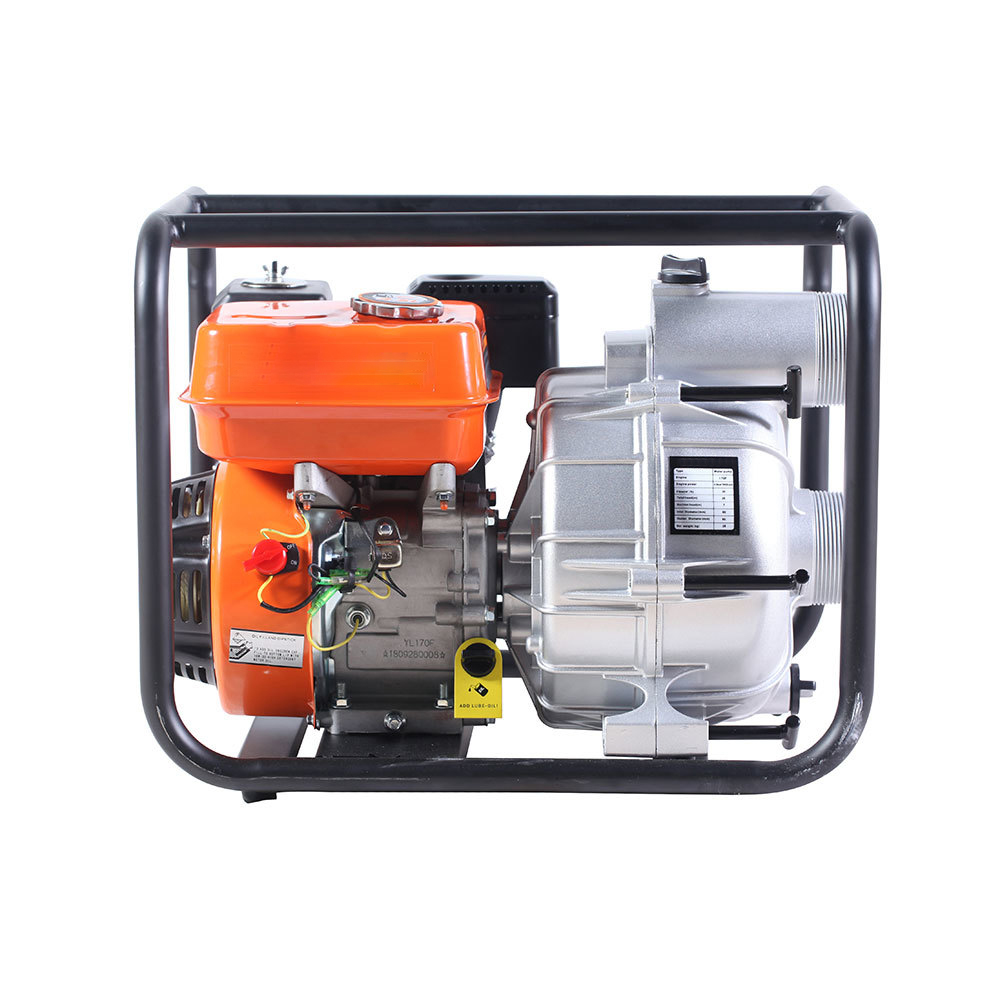

WT30(C)
Technical parameters 技术参数
| Model 型号 | WT30(C) | |
|
Water Pump 水泵 |
Type类型 | trash pump自吸排污泵 |
| Diameter of Inlet&Outlet(mm)进/岀水口直径 | 80/80 | |
| Max. Suction(m)最大吸程 | 5 | |
| Max. Lift(m)最大扬程 | 19 | |
| Max.Volume of Flow(m3/h)最大流量 | 36 | |
|
Engine 发动机 |
Model型号 | GN170F |
| Type发动机类型 | 4-stroke/air cooling/single cylinder/OHV 四冲程/单缸/强制风冷/OHV | |
| Displacement(cc)排量 | 208 | |
| Ignition Mode点火方式 | Transistorized Magneto晶体管无触点点火 | |
| Starting Mode启动方式 | Recoil Start 手启动 | |
| Max AC Output Power(kw)最大功率 | 4.2/3600 | |
| Max Torque(N.M/rpm)最大扭矩 | 12.0/2500 | |
| Fuel Tank Capacity(L/Gal)油箱容量 | 3.6 | |
| Fuel Consumption (L/Hour) 燃油消耗率 | 0.54 | |
| Continuous Work Time(h)持续工作时间 | 2.7 | |
| Oil Capacity(L/Gal)机油容量 | 0.9 | |
| Noice Level(7m)(dB)噪音 | 78 | |
| Package包装 | Product Dimensions(mm)产品尺寸 | 535 x 430 x 425 |
| Package Dimensions(mm)包装尺寸 | 550 x 445 x 455 | |
| Net Weight/Gross Weight(kgs)净重/毛重 | 28/30 | |
| 20FT Quantity 20尺装箱数量 | 260 | |
| 40FT Quantity 40尺装箱数量 | 525 | |
| 40HQ Quantity 40尺高柜装箱数量 | 525 | |
