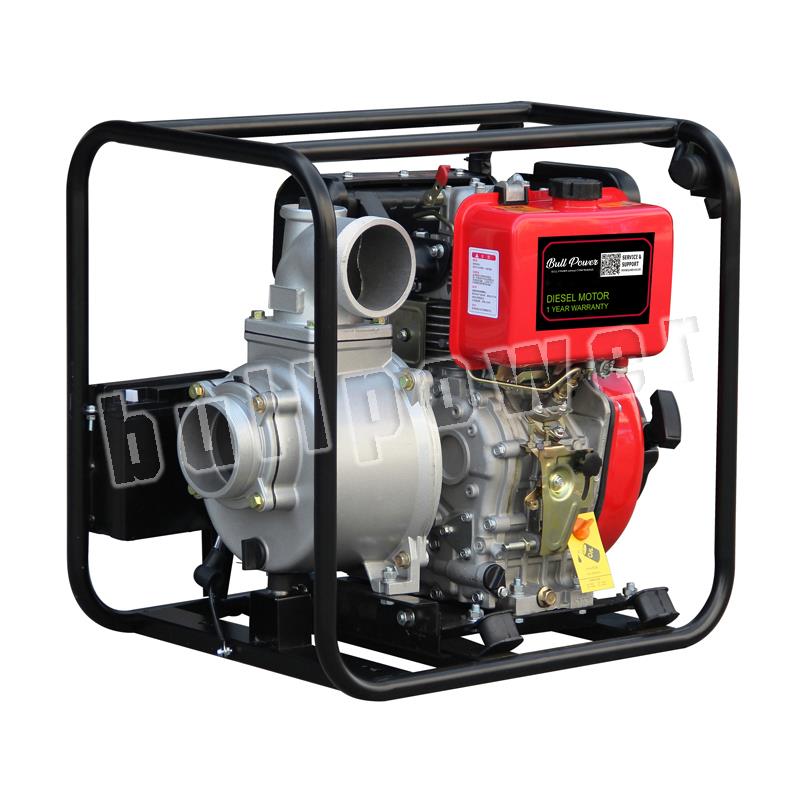

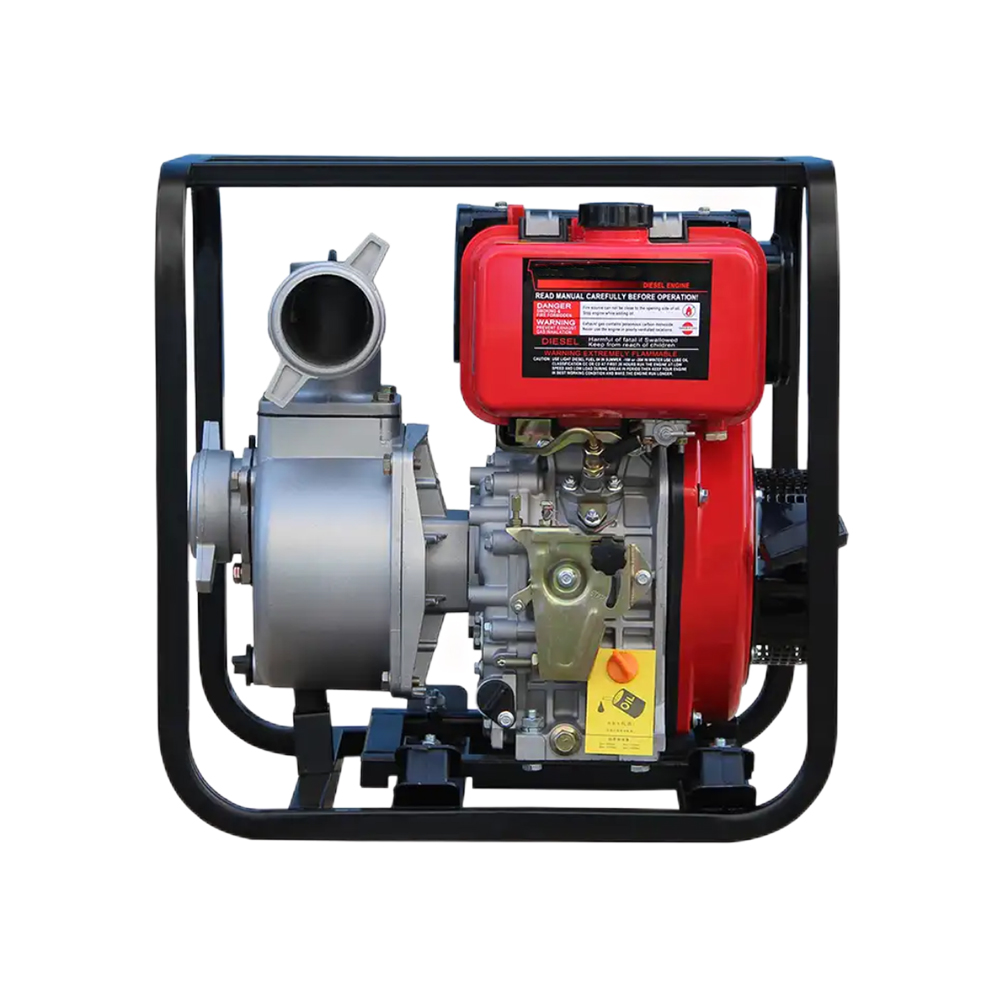

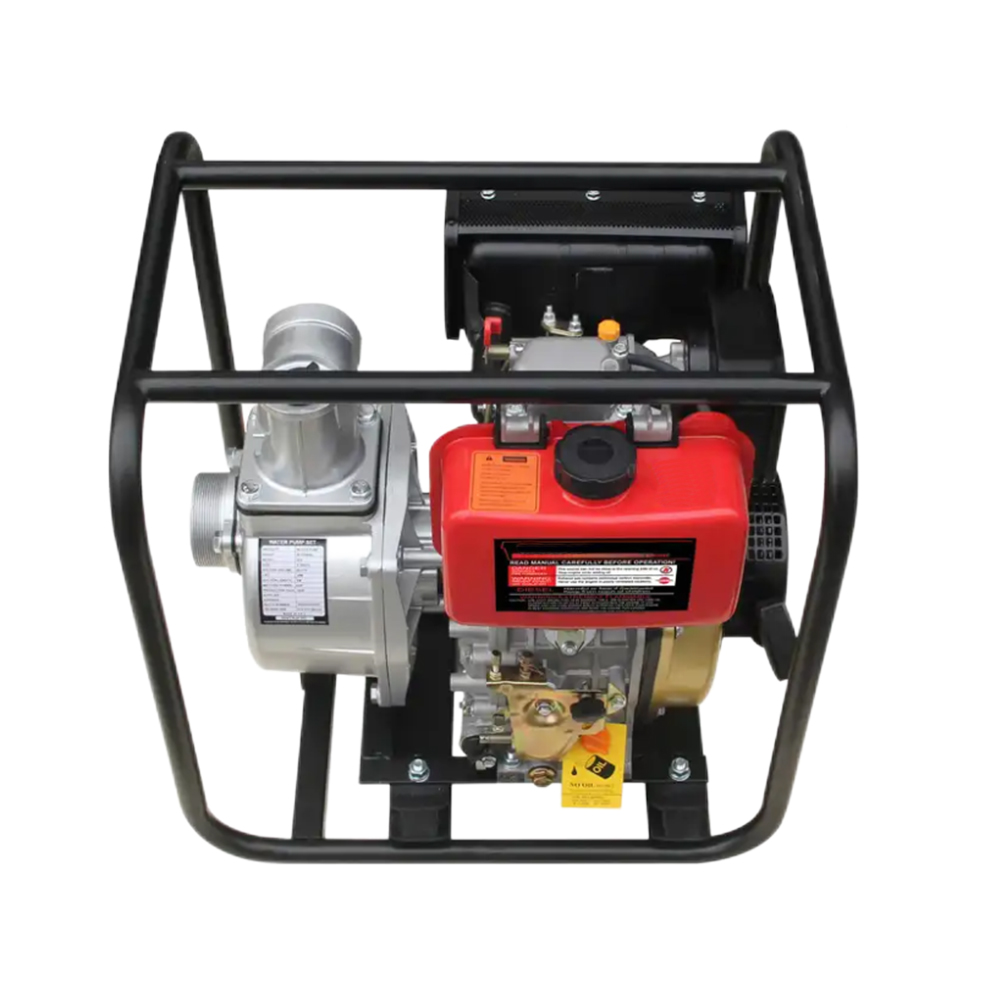

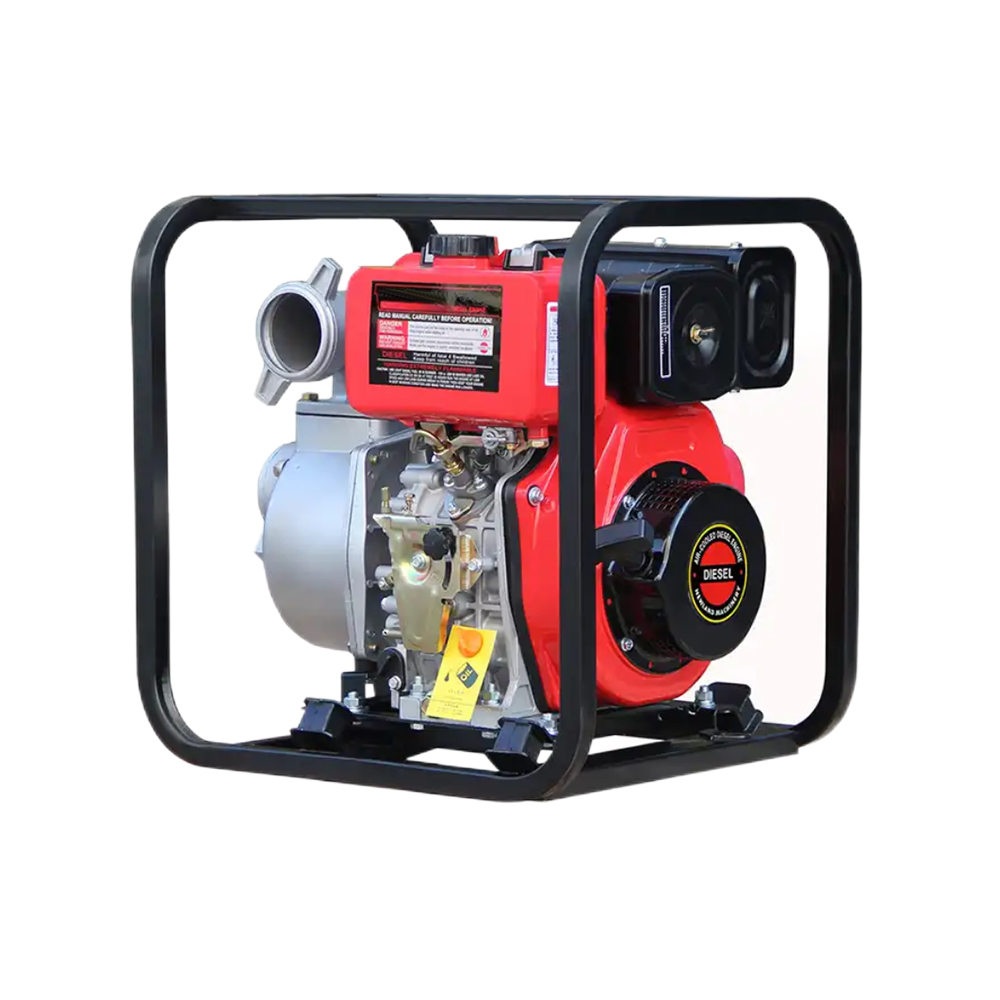

GND30
Technical parameters 技术参数
| Model 型号 | GND30 | |
|
Water Pump 水泵 |
Type类型 | self-priming pump 自吸泵 |
| Diameter of Inlet&Outlet(mm)进/岀水口直径 | 80/80 | |
| Max. Suction(m)最大吸程 | 8 | |
| Max. Lift(m)最大扬程 | 28 | |
| Max.Volume of Flow(m3/h)最大流量 | 40 | |
|
Engine 发动机 |
Model 型号 | GND178F |
| Type发动机类型 | single-cylinder/vertical/air-cooled/4-stoke/direct injection 单缸/立式/四冲程/强制风冷/直喷式 | |
| Bore x stroke (mm)缸径 x 行程 | 78 x 62 | |
| Displacement(cc)排量 | 296 | |
| Ignition Mode点火方式 | Cl Compression Ignition 压缩式点火 | |
| Starting Mode启动方式 | Recoil/Electric start 手/电启动 | |
| Engine speed(rpm)转速 | 3600 | |
| Max.Output(kw/rpm)最大功率 | 4.8 | |
| Rated output(kw ) 额定功率 | 4.4 | |
| MaxTorque(N.M/rpm)最大扭矩 | 16 | |
| Fuel Tank Capacity(L/Gal)油箱容量 | 3.5 | |
| Fuel Consumption (L/Hour)/ 燃油消耗率 | 0.34 | |
| Operating Hours(h) 连续运行时间 | 2.8 | |
| Oil Capacity(L/Gal)机油容量 | 1.1 | |
| Noice Level(7m)(dB)噪音 | 92 | |
|
Package 包装 |
Product Dimensions(mm)产品尺寸 | 580 x 445 x 585 |
| Package Dimensions(mm)包装尺寸 | 595 x 460 x 610 | |
| Net Weight/Gross Weight(kgs)净重/毛重 | 46/48 | |
| 20FT Quantity 20尺装箱数量 | 135 | |
| 40FT Quantity 40尺装箱数量 | 300 | |
| 40HQ Quantity 40尺高柜装箱数量 | 400 | |
