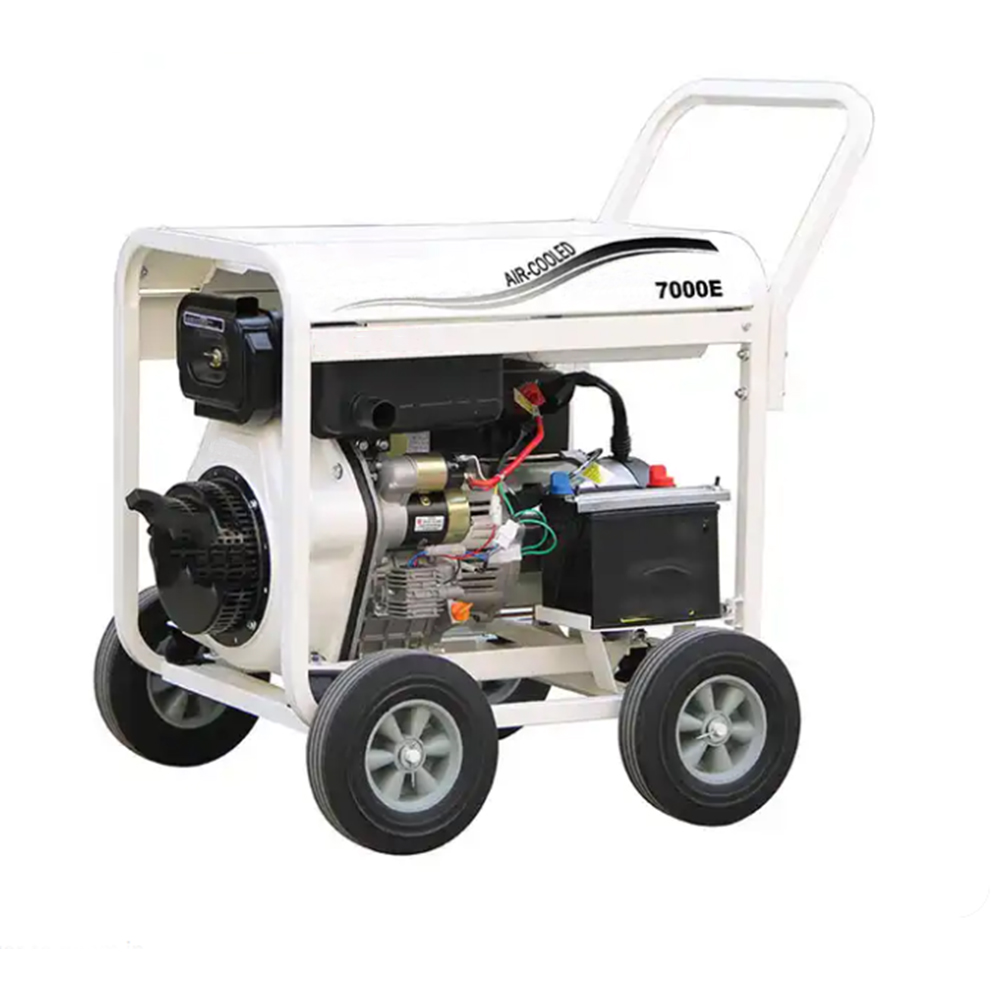

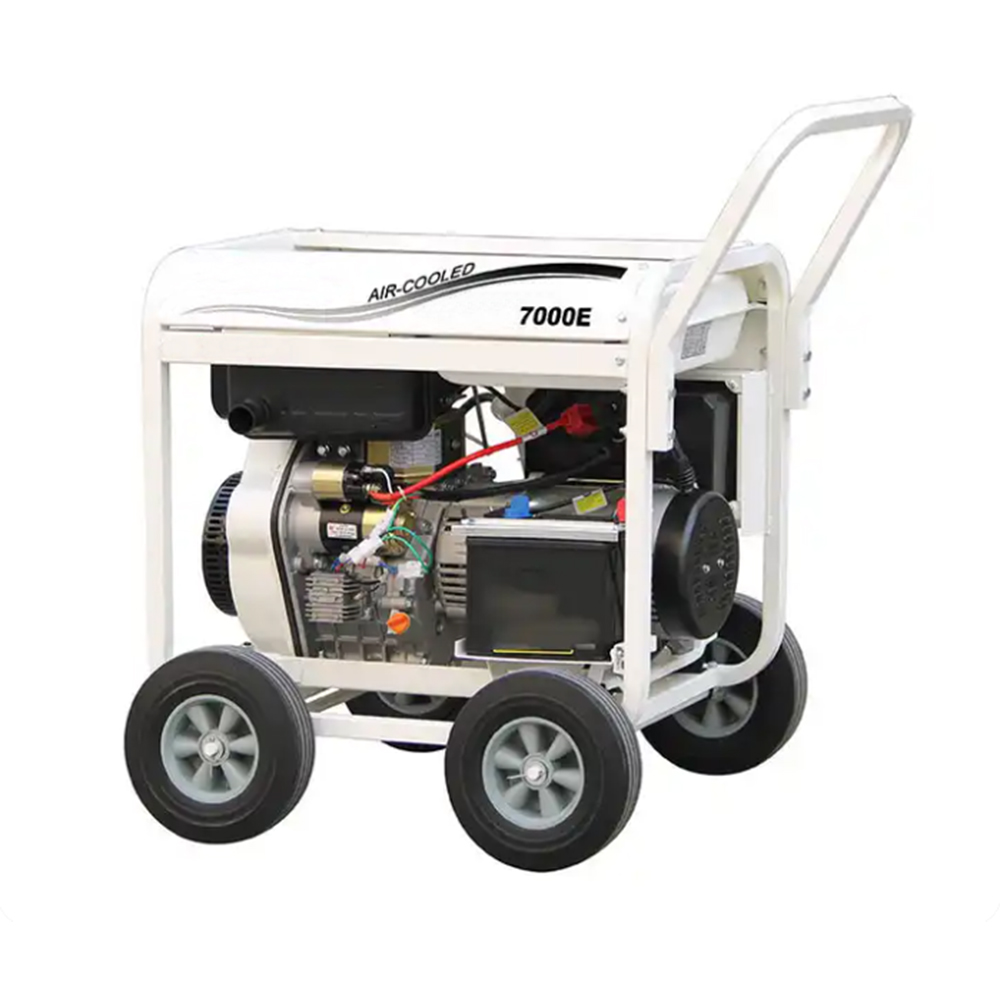

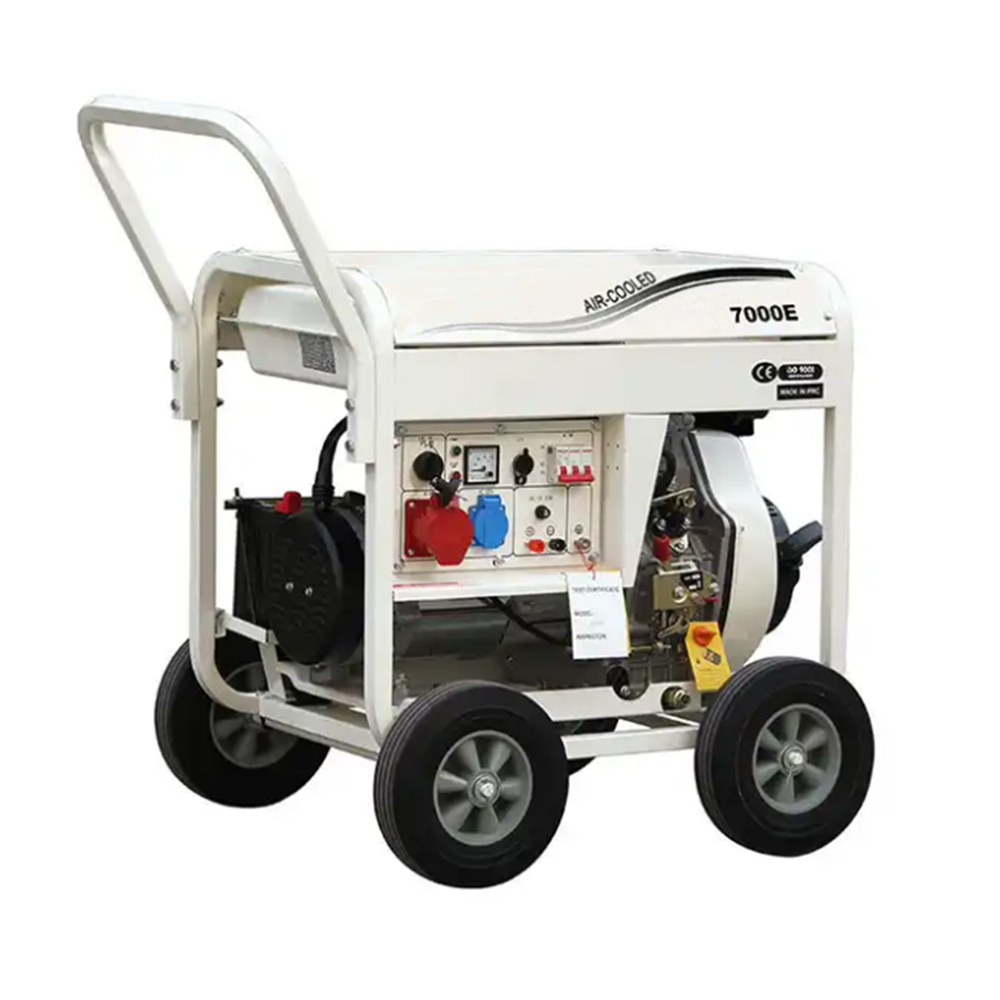

GND7000E
Technical parameters 技术参数
| Model型号 | GND7000E | ||
| Generator发电机 | Rated Frequency(Hz)额定频率 | 50 | 60 |
| Max Output(kW)最大功率 | 5.5 | 6 | |
| Rated Output(kW)额定功率 | 5 | 5.5 | |
| Rated AC Voltage(v) 额定电压 | 120, 220, 230, 240, 220/380, 230/400, 240/415 | ||
| DC Output直流输岀 | 12V/8.3A | ||
| Phase项数 | Single phase or Three phase | ||
| Alternator type电机类型 | Self-excited, 2-pole alternator | ||
| Power Factor(cos)功率因素 | 1.0 | ||
|
Engine 发动机 |
Model 型号 | HR188FA | |
| Type发动机类型 | single-cylinder/vertical/air-cooled/4-stoke/direct injection 单缸/立式/四冲程/强制风冷/直喷式 | ||
| Bore x stroke (mm)缸径 x 行程 | 88×75 | ||
| Displacement(cc)排量 | 456 | ||
| Ignition Mode点火方式 | Cl Compression Ignition 压缩式点火 | ||
| Starting Mode启动方式 | Recoil/Electric start 手/电启动 | ||
| Engine speed(rpm)转速 | 3600 | ||
| Max.Output(kw/rpm)最大功率 | 8 | ||
| Rated output(kw ) 额定功率 | 7.5 | ||
| MaxTorque(N.M/rpm)最大扭矩 | 25 | ||
| Fuel Tank Capacity(L/Gal)油箱容量 | 12.5 | ||
| Fuel Consumption (L/Hour)/ 燃油消耗率 | 0.36 | ||
| Operating Hours(h) 连续运行时间 | 6.8 | 6.5 | |
| Oil Capacity(L/Gal)机油容量 | 1.65 | ||
| Noice Level(7m)(dB)噪音 | 80-85 | ||
| Standard features 标准功能 | Voltmeter | Direct Injection | |
| AC Output Socket | yes | ||
| AC circuit breaker | 2 | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| Optional features 可选功能 | DC circuit breaker | yes | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| Package包装 | Product Dimensions(mm)产品尺寸 | 690 x 475 x 650 | |
| Package Dimensions(mm)包装尺寸 | 710×500×670 | ||
| Net Weight/Gross Weight(kgs)净重/毛重 | 120/125 | ||
| 20FT Quantity 20尺装箱数量 | 105 | ||
| 40HQ Quantity 40尺高柜装箱数量 | 210 | ||
