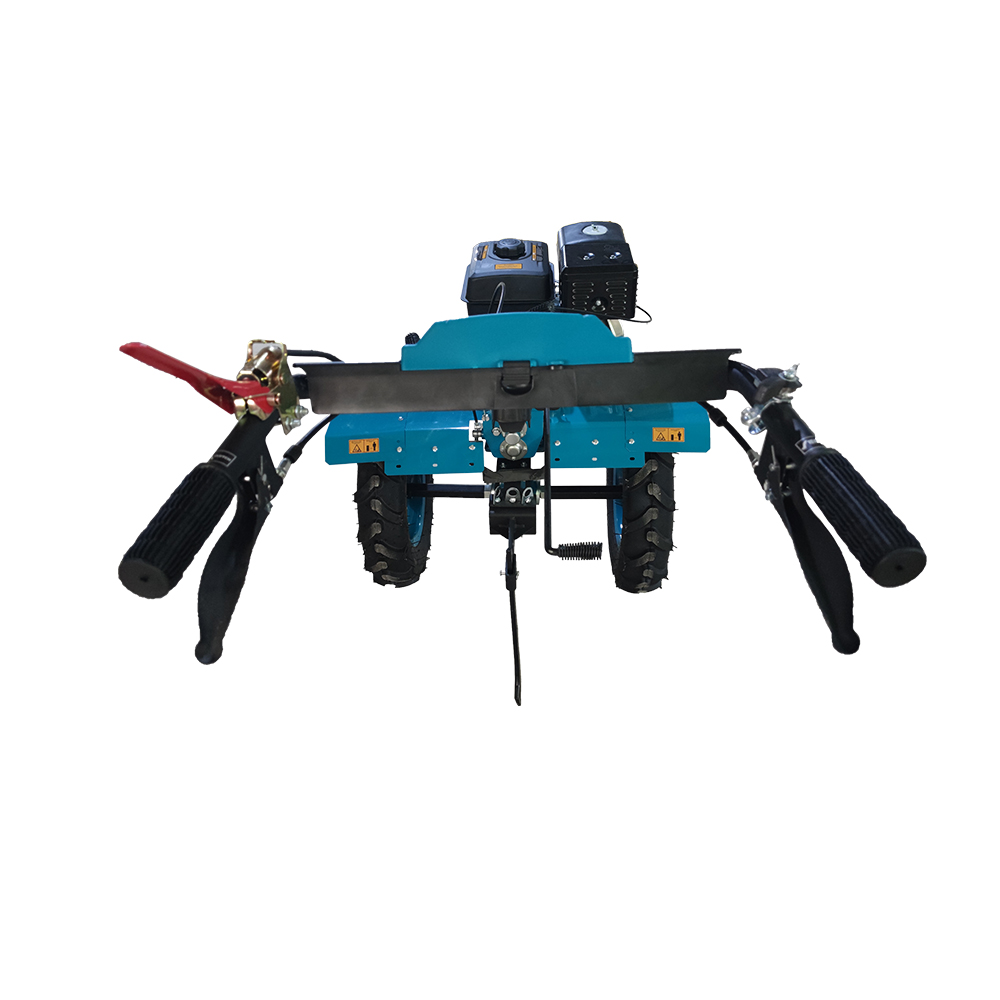

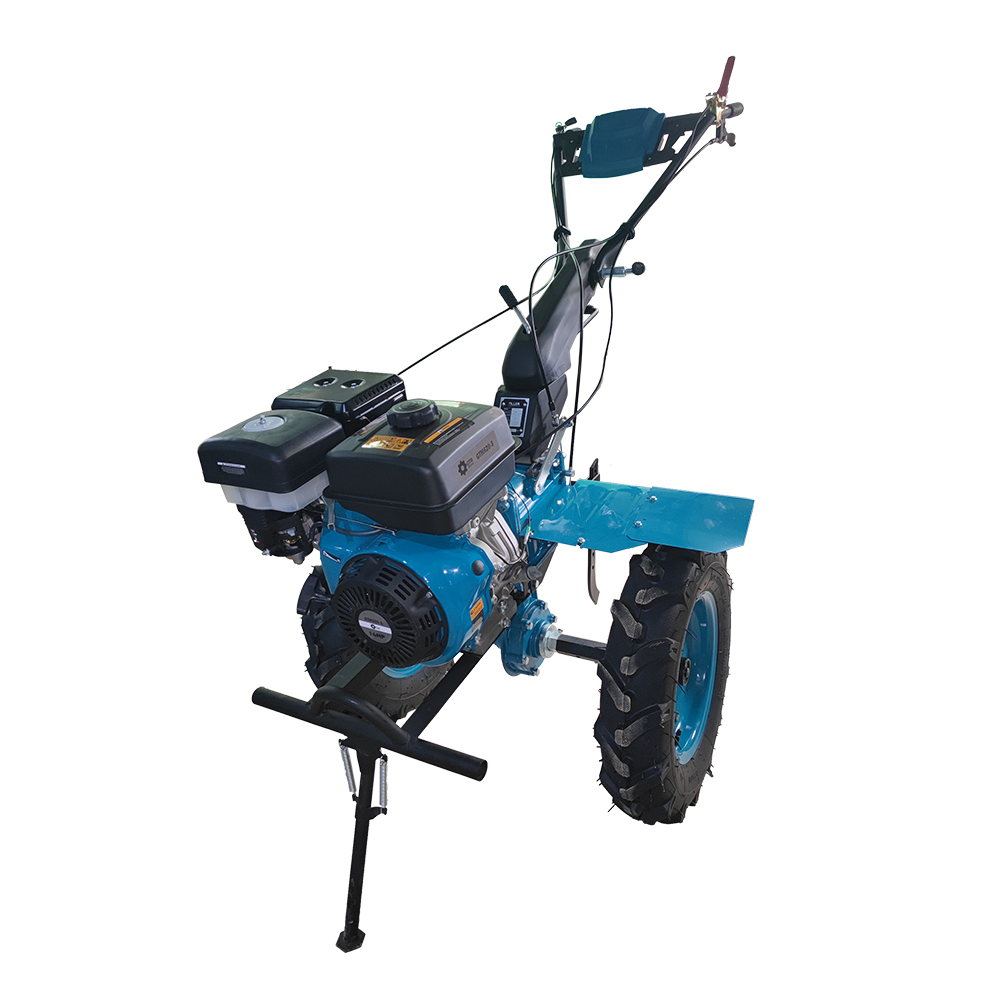

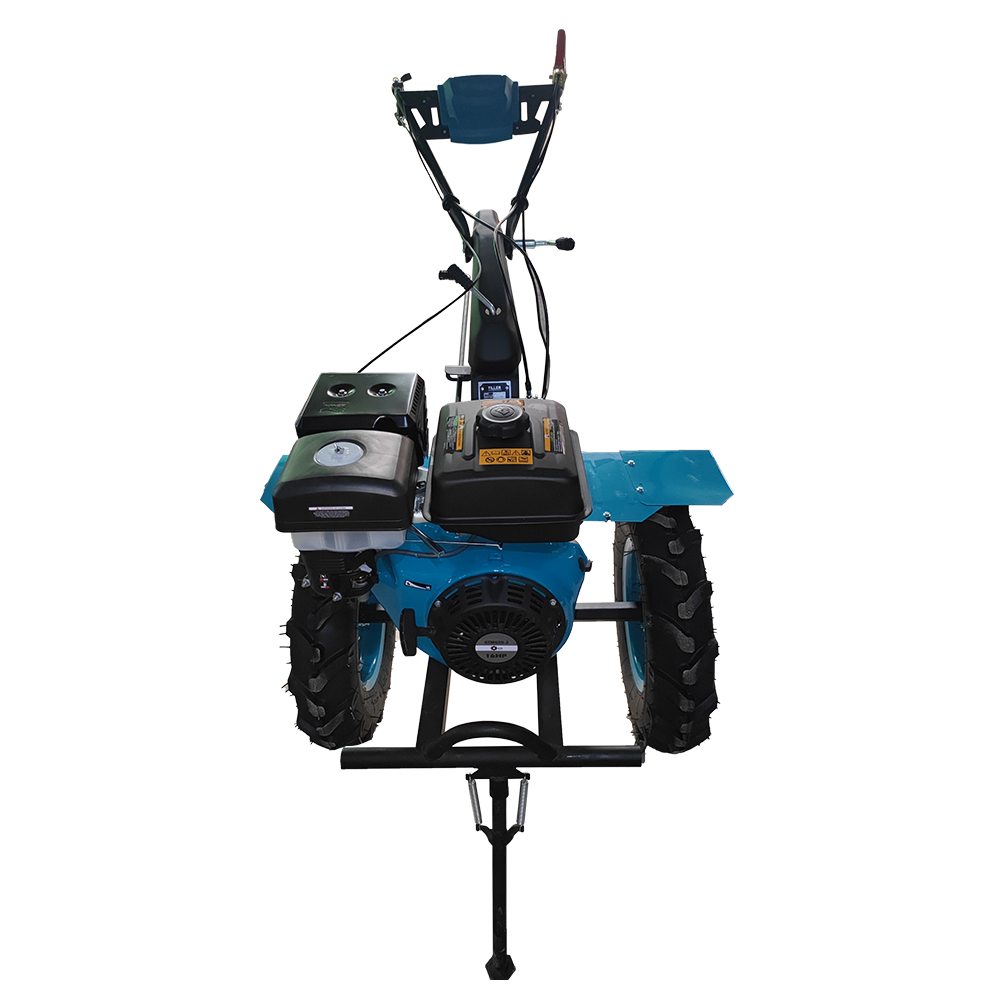

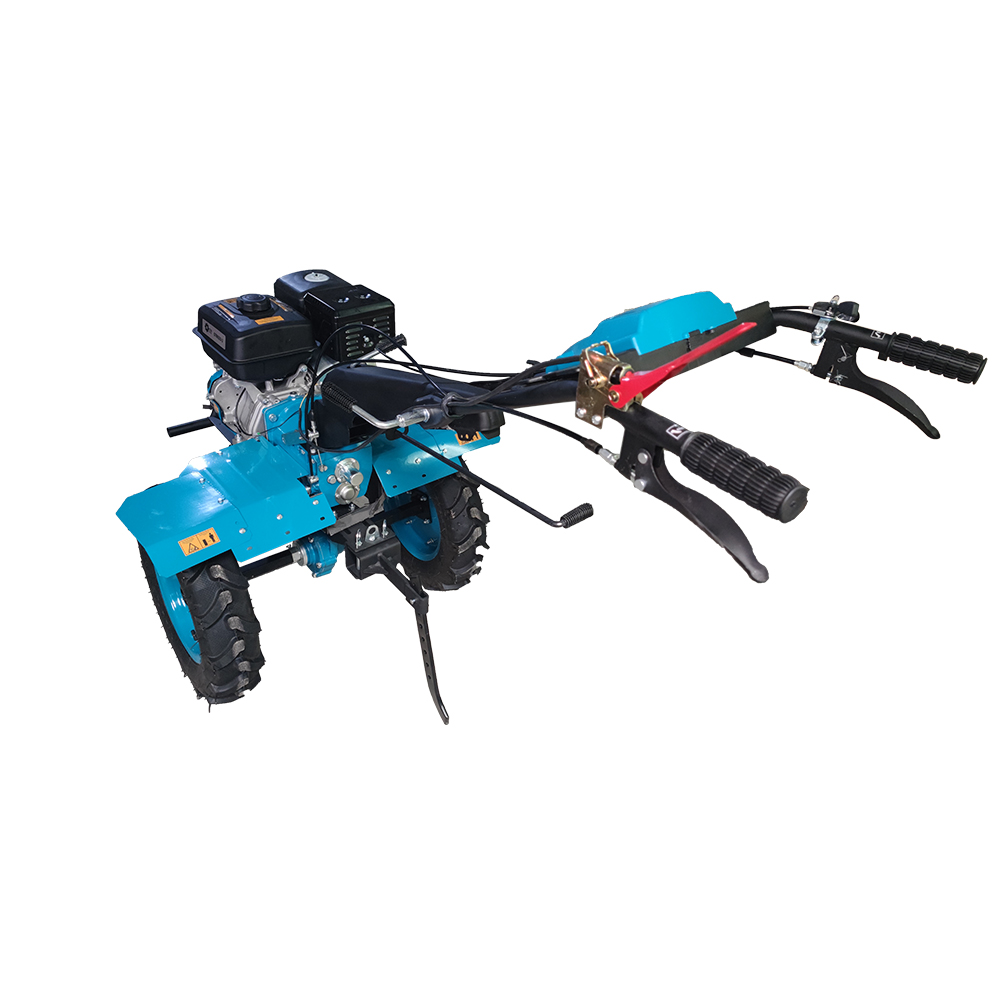

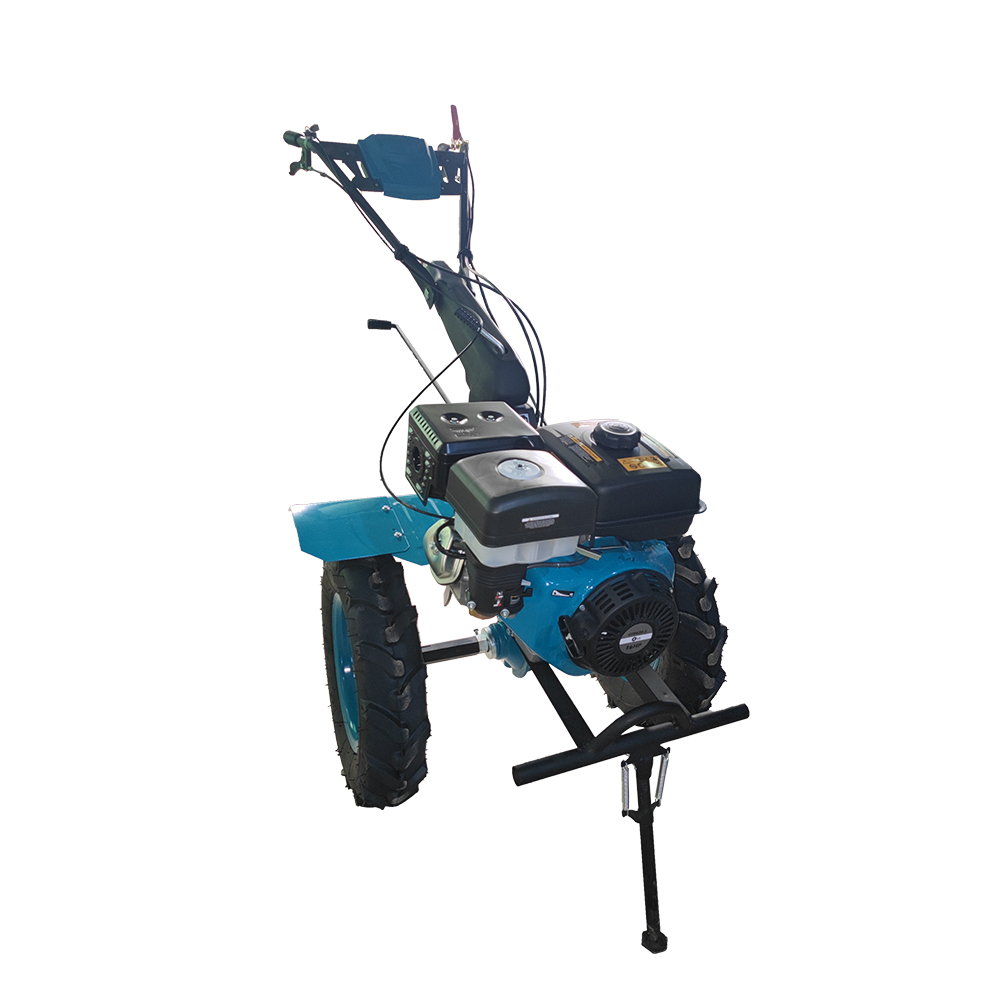

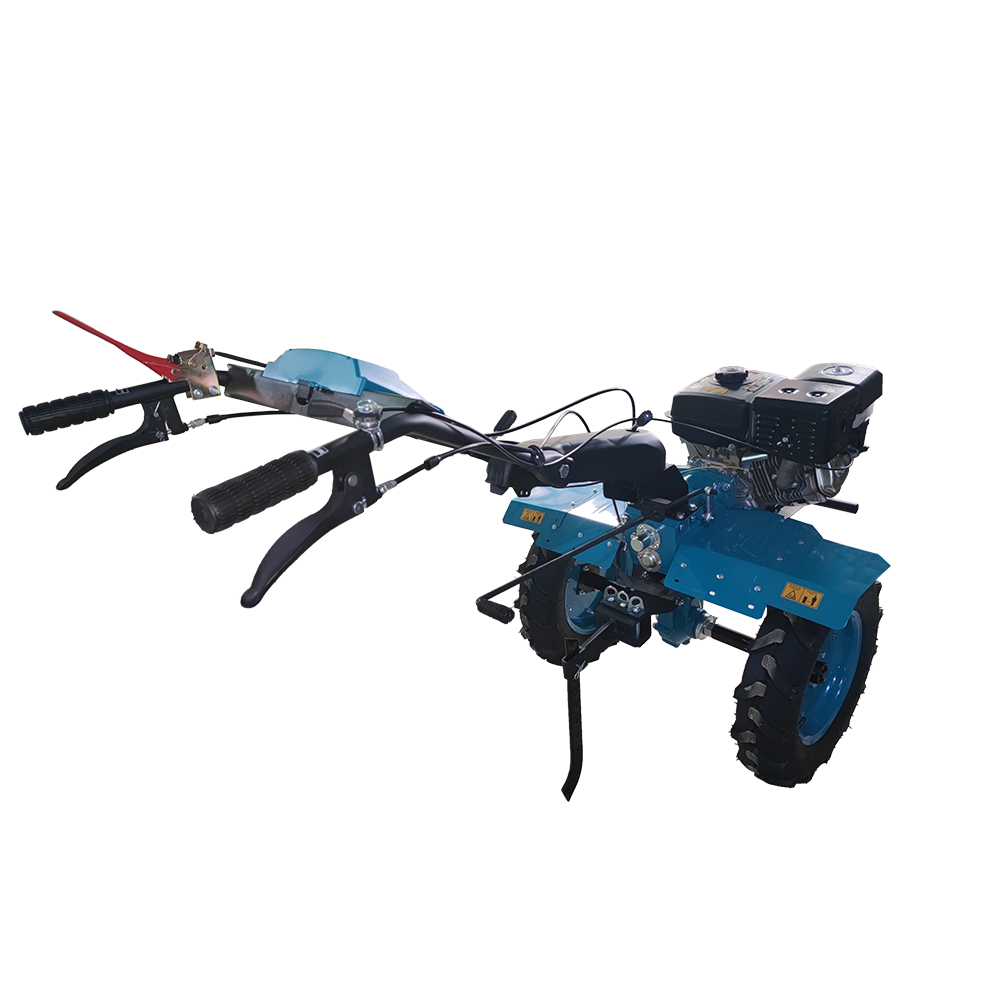

1100PRO
Technical parameters 技术参数
| Rotary tiller耕机 | Model型号 | GNG1100PRO |
| Tilling scope(mm)耕宽 | 800-1100 | |
| Tilling depth(mm)耕深 | 100-300 | |
| Gear shifting档位 | 3,0,2,0,1,-1 | |
| Driving model 传动方式 | gear | |
| Transmission oil capacity(L)变速箱油容量 | 2.0 | |
| Handlebar System | Up/Down/Left/Right | |
| Tire轮胎 | 4.0-8 | |
| Blades刀具 | 4Pieces x 4Groups | |
|
Engine 发动机 |
Model型号 | GN225A/170F |
| Type发动机类型 | 4-stroke/aircooling/single cylinder/OHV 四冲程/强制风冷/单缸/OHV | |
| Displacement(cc)排量 | 220 | |
| Ignition Mode点火方式 | Transistorized Magneto晶体管无触点点火 | |
| Starting Mode启动方式 | Recoil/Electric start 手/电启动 | |
| Max Power(hp/kw)rpm最大功率 | 3.8/3600 | |
| Max Torque(N.M/rpm)最大扭矩 | 9.5/2500 | |
| Fuel Tank Capacity(L/Gal)油箱容量 | 3.6 | |
| Fuel Consumption (L/Hour)燃油消耗率 | 0.54 | |
| Continuous Work Time(h)持续工作时间 | 2.7 | |
| Oil Capacity(L/Gal)机油容量 | 0.6 | |
| Noice Level(7m)(dB)噪音 | ≤82 | |
|
Package 包装 |
Package Dimensions(mm)包装尺寸 | 1000 x 580 x 840 |
| Net Weight/Gross Weight(kgs)净重/毛重 | 133/143 | |
| 20FT Quantity 20尺装箱数量 | 44 | |
| 40HQ Quantity 40尺高柜装箱数量 | 144 |
