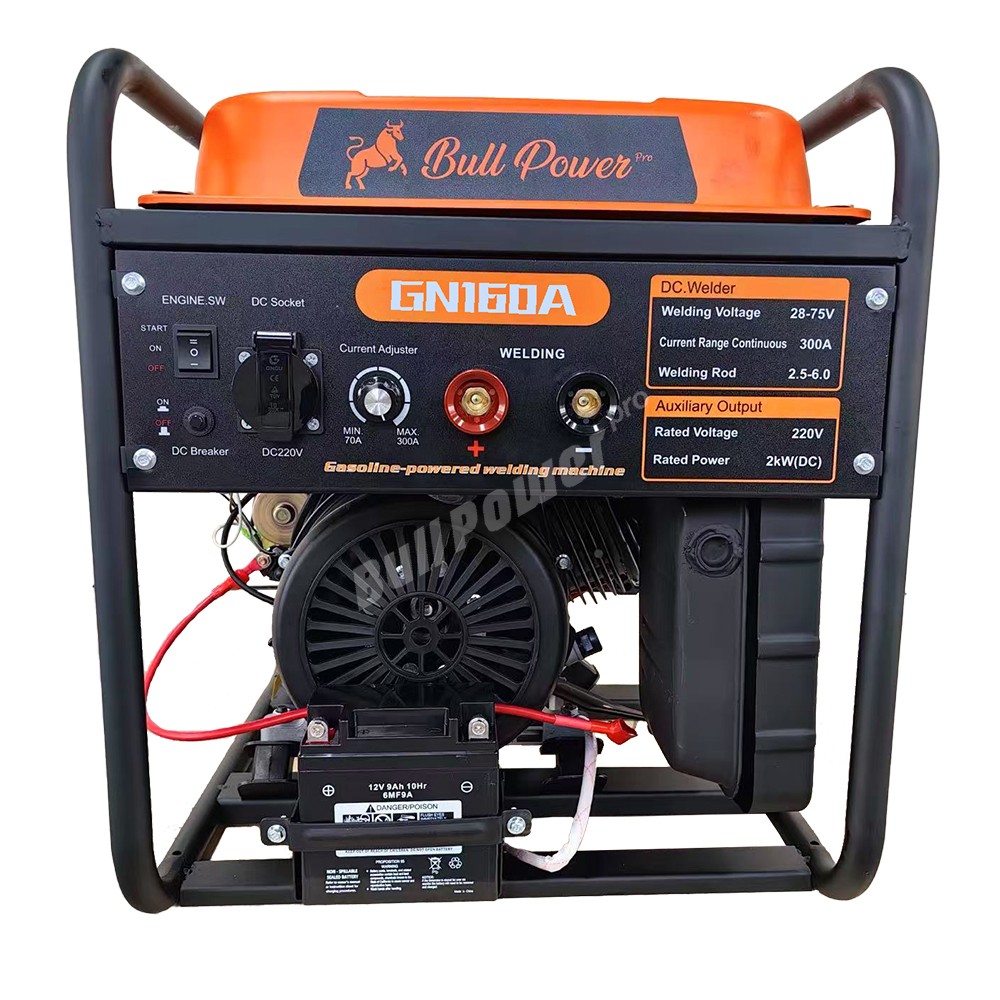

GN160A
Technical parameters 技术参数
| Model型号 | GN160A | |
|
Generator 发电机 |
Rated Voltage(v)额定电压 | 220、230、240 |
| Rated Frequency(Hz)额定频率 | 50/60 | |
| Rated Output Power(kw)额定功率 | 3.6 | |
| Max Output Power(kw)最大功率 | 4 | |
|
Welding 电焊 |
Rated Frequency(Hz)额定频率 | 50 |
| DC Rated Output Voltage(v)额定电压 | 22-28 | |
| DC Welding Voltage(v)焊接电压 | 20 | |
| Loadng Continuous rate(%)负载持续率 | 60 | |
| Current Adjusting Range(A)电流调节范围 | 50-130 | |
| Diameter of welding rod(mm)焊条直径 | 2.0-4.0 | |
| Insulation Grade 绝缘等级 | F | |
| Protection Grade防护等级 | IP23 | |
|
Engine 发动机 |
Model型号 | GN170F |
| Type发动机类型 | 4-stroke/aircooling/single cylinder/OHV 四冲程/单缸/强制风冷/OHV | |
| Displacement(cc)排量 | 208 | |
| Ignition Mode点火方式 | Transistorized Magneto晶体管无触点点火 | |
| Starting Mode 启动方式 | ||
| Max Torque(N.MZrpm)最大扭矩 | 12/2500 | |
| Fuel Tank Capacity(L/Gal)油箱容量 | 3.6 | |
| Fuel Consumption (L/Hour)/Operating Hours(h)燃油消耗率/连续运行时间 | 0.54/2.7 | |
| Oil Capacity(L/Gal)机油容量 | 0.6 | |
| Noice Level(7m)(dB)噪音 | 74 | |
| Product Dimensions(mm)产品尺寸 | 490 x 400 x 455 | |
| Package Dimensions(mm)包装尺寸 | 515 x 415 x 475 | |
| Net Weight/Gross Weight(kgs)净重/毛重 | 32/34 | |
|
Package 包装 |
20FT Quantity 20尺装箱数量 | 280 |
| 40FT Quantity 40尺装箱数量 | 575 | |
| 40HQ Quantity 40尺高柜装箱数量 | 575 | |
