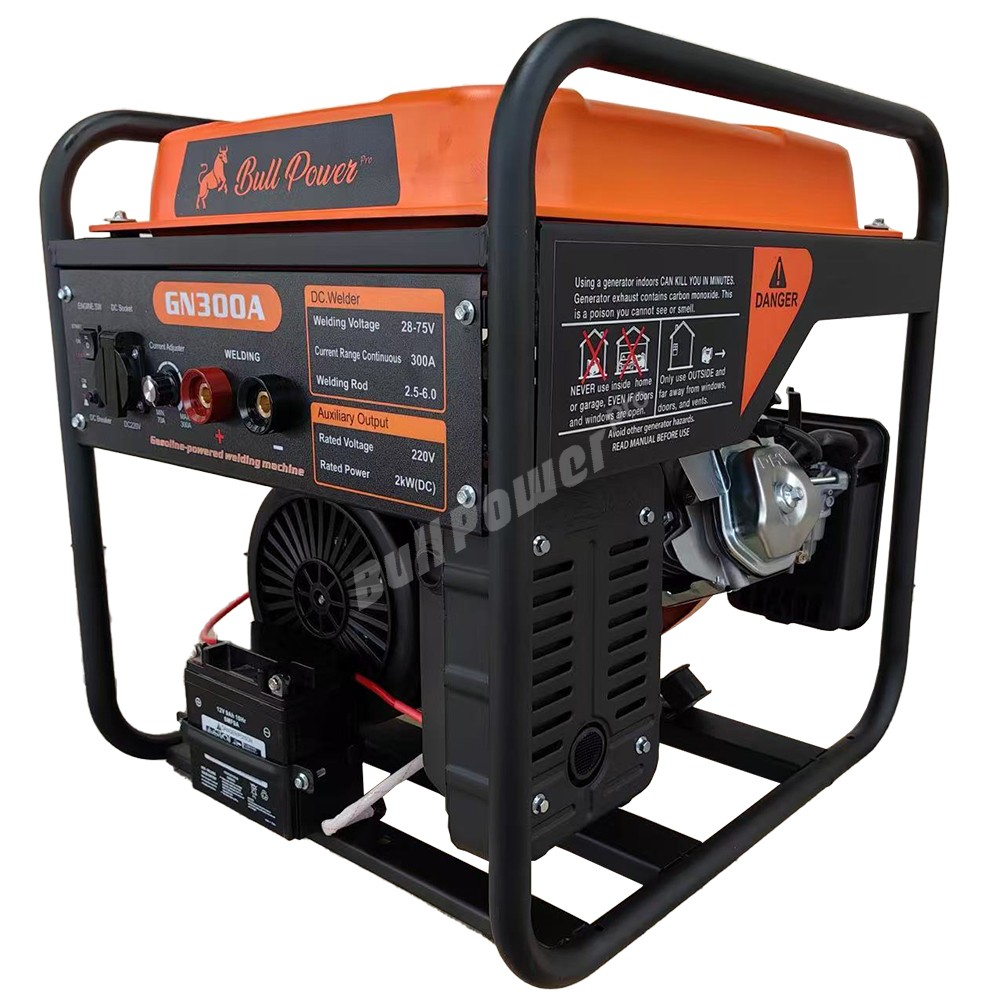

GN300A
Technical parameters 技术参数
| Model型号 | GN300A | |
|
Generator 发电机 |
Rated Voltage(v)额定电压 | 220、230、240 |
| Rated Frequency(Hz)额定频率 | 50/60 | |
| Rated Output Power(kw)额定功率 | 6 | |
| Max Output Power(kw)最大功率 | 8.8 | |
|
Welding 电焊 |
Rated Frequency(Hz)额定频率 | 50 |
| DC Rated Output Voltage(v)额定电压 | 22-28 | |
| DC Welding Voltage(v)焊接电压 | 22-28 | |
| Loadng Continuous rate(%)负载持续率 | 60 | |
| Current Adjusting Range(A)电流调节范围 | 70-300 | |
| Diameter of welding rod(mm)焊条直径 | 2.0-5.0 | |
| Insulation Grade 绝缘等级 | F | |
| Protection Grade防护等级 | IP23 | |
|
Engine 发动机 |
Model型号 | GN190F |
| Type发动机类型 | 4-stroke/aircooling/single cylinder/OHV 四冲程/单缸/强制风冷/OHV | |
| Displacement(cc)排量 | 420 | |
| Ignition Mode点火方式 | Transistorized Magneto晶体管无触点点火 | |
| Starting Mode 启动方式 | ||
| Max Torque(N.MZrpm)最大扭矩 | 26.5/2500 | |
| Fuel Tank Capacity(L/Gal)油箱容量 | 25 | |
| Fuel Consumption (L/Hour)/Operating Hours(h)燃油消耗率/连续运行时间 | 0.51/2.8 | |
| Oil Capacity(L/Gal)机油容量 | 1.1 | |
| Noice Level(7m)(dB)噪音 | 82 | |
| Product Dimensions(mm)产品尺寸 | 680 x 510 x 535 | |
| Package Dimensions(mm)包装尺寸 | 700 x 530 x 560 | |
| Net Weight/Gross Weight(kgs)净重/毛重 | 90/95 | |
|
Package 包装 |
20FT Quantity 20尺装箱数量 | 128 |
| 40FT Quantity 40尺装箱数量 | 272 | |
| 40HQ Quantity 40尺高柜装箱数量 | 272 | |
